Features:
- A Super Air Amplifier pulls in a large volume of surrounding air using a small amount of compressed air to produce a high volume, high velocity outlet flow through a fixed air gap.
- Utilizing the Coanda effect, a basic principle of fluidics, An Air Amplifier becomes a simple, low cost way to circulate air, move smoke, fume and light material.
- This is also effective as a blower to cool, clean and dry part or process and in workstation dust collection application.
- The quiet, efficient Super Air Amplifier will create an output flow up to 25 times its consumption rate.
- Both the vacuum and discharge end of the Air Amplifier can be ducted, making it ideal for drawing fresh air from another location, or moving smoke and fume away.

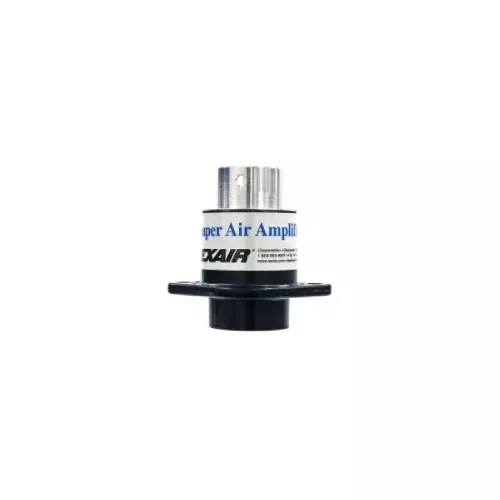

- 1-1/4″ Alum. Super Air Amplifier
Applications:
- Vent welding smoke
- Cool hot parts
- Dry wet parts
- Clean machined parts
- Distribute heat in ovens/molds
- Ventilate confined areas
- Dust collection
- Exhaust tank fumes
Advantages:
- Compared to Fans:
- Rated for environments up to 700°F (374°C)
- Compact, lightweight, portable
- No electricity
- No moving parts – no maintenance
- Ends are easily ducted
- Instant on/off
- Variable force and flow
- No RF interference
- Compared to Venturies and Ejectors:
- More air with lower compressed air consumption
- Higher flow amplification
- No internal obstructions
- Meets OSHA pressure and noise requirements
- Quiet
How It Work:
- Compressed air flows through the air inlet (1) into an annular chamber (2).
- It is then throttled through a small ring nozzle (3) at high velocity.
- This primary airstream adheres to the Coanda profile (4), which directs it toward the outlet.
- A low pressure area is created at the center (5), inducing a high volume flow of surrounding air into the primary airstream.
- The combined flow of primary and surrounding air exhausts from the Air Amplifier in a high volume, high velocity flow.
