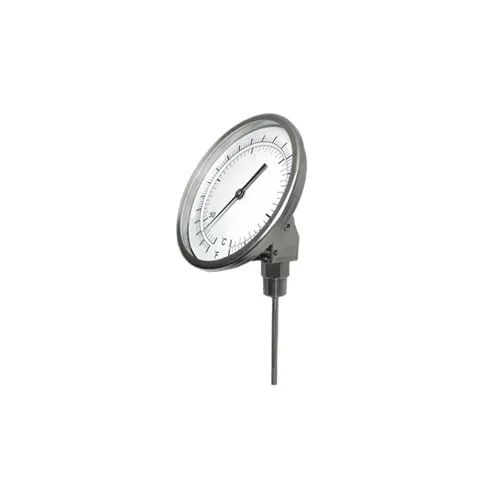

- Monitor process temperatures with this thermometer. The thermometer uses a bimetallic sensing element, which reacts measurably and consistently with temperature change.
- The sensing element is made of two different metals welded together to form a coil which is enclosed in a stainless steel stem. When the stem is exposed to temperature change the coil expands or contracts and the pointer moves accordingly.
- FeaturesAnti-Vibration Design
- Adjustable Angle Dial Allows 90° Vertical Adjustment and 360° Dial Rotation
- Fast Response toTemperatureChange
- Case:Stainless Steel, HermeticallySealed
- Stem: 316Stainless SteelStem
- Connection:Adjustable Angle 1/2 NPT
- Lens: Glass
- Scale: Dual Fahrenheit &Celsius
- Accuracy: 1%Full Scale Per Grade A, ASMEB40.3
- AmbientTemperature: -30 F to 180F
- ExternalAdjustment: Zero ResetScrew
- Design Meets orExceed ASME B40.3 ThermometerStandard
Options
Contact Midwest Control forOther Temperature Ranges
