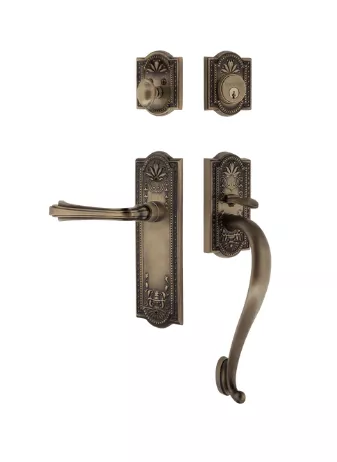

The Meadows Exterior Handleset, with its intricate beaded detailing and botanical flourishes, creates an inspired design theme. All Nostalgic Warehouse handlesets are mounted on a solid (not plated) forged brass base for durability and beauty.
Features
- Solid forged brass for fine detail
- Complete set for one door (both sides)
- Perfect for restoration and easy to install on modern pre-drilled doors
- Hand assembled in USA
- 5-year warranty
Specifications
- CROSS BORE DIAMETER
- 2 1/8″
- DEADBOLT HEIGHT
- 3.375″
- DEADBOLT THROW LENGTH
- 1″
- DEADBOLT WIDTH
- 2.5″
- DOOR THICKNESS
- 1 3/4″ – 2″
- EXTERIOR PROJECTION
- 2.25″
- EXTERIOR LOW PLATE HEIGHT
- 1.28″
- EXTERIOR LOW PLATE WIDTH
- 1.28″
- GRIP CENTER-TO-CENTER
- 8.8″
- GRIP LENGTH
- 8.4735″
- GRIP STYLE
- S Grip
- INTERIOR LONG PLATE HEIGHT
- 7.875″
- INTERIOR LONG PLATE WIDTH
- 2.625″
- INTERIOR PLATE HEIGHT
- 7.875″
- INTERIOR PLATE WIDTH
- 2.625″
- LEVER WIDTH
- 4.375″
- MATERIAL
- Brass
- MAX WIDTH
- 3″
- STRIKE WIDTH
- 1″
- THUMB TURN DIAMETER
- 1.375″
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
Downloads
- Install Instructions (Sectional Handleset)
- Technical Specifications Meadows Handleset – S Grip
- Technical Specifications Fleur Lever
