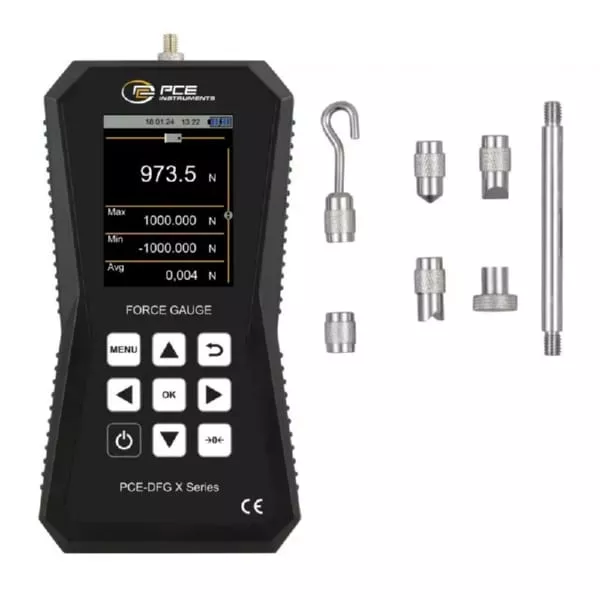

Dynamometer with internal measuring cell up to 1000 N / various alarm modes / graphic display / data logger / incl. software
The dynamometer can be used to measure both tensile and compressive forces with high accuracy. Tensile and compressive forces are often measured in the test laboratory. For example, to determine the yield point, the tear-off force or the force required to actuate buttons or switches. The device has an internal measuring cell and can measure forces up to 1000 N. Various eyelets or hooks with M6 threads can be attached to the measuring cells. It is also possible to attach your own devices to the measuring cell with these threads.
The internal memory of 32 GB offers space for 30 million measuring points. This allows measurement logs to be created, saved and exported. The dynamometer has a USB-C interface that can be used to read the measurement data into the PC software. The dynamometer is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value in the selected measuring range. Various force test stands are available for adapting the force transducer.
Features:
- Measuring range: 0 … 1000 N
- Measuring rate: 1 … 7200 Hz
- Accuracy: ±0.05 % F.S.
- Graphic display
- USB-C interface
- PC software
- 32 GB memory for 30 mio. measuring points
- Measuring cells can be easily changed
- Various alarm modes
- Bar chart for displaying the measured value in the measuring range
- Calibration reminder
Includes:
- 1 x dynamometer PCE-DFG 1000 X
- 1 x adapter set
- 1 x case
- 1 x USB-C cable
- 1 x PC software
- 1 x operating instructions
