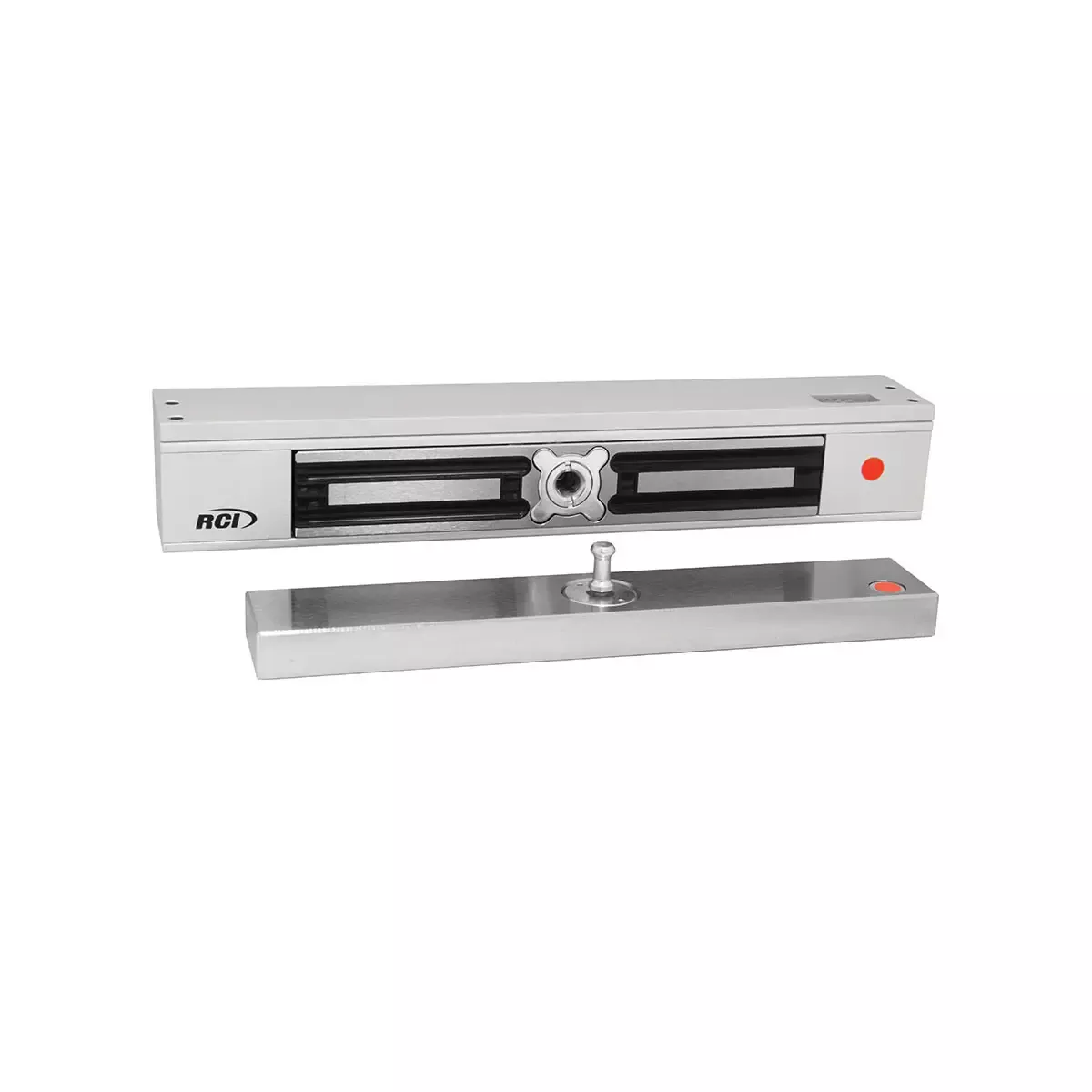

The MEM2400 compact electromechanical lock is designed for inswinging doors and small enclosures. The RCI MEM2400 is a patented electromagnetic lock with early warning detectors and bi-color LED lights to indicate the lock status. The electromechanical lock is capable of releasing under door back pressure (pre-load) of up to 150lbs (70kg) and includes an adjustable L & Z bracket.
Features
- Patented electromagnetic lock with early warning detectors.
- Bi-color LED light indicates lock status.
- Compact surface-mount design.
- Includes adjustable L & Z bracket.
- Capable of releasing under door back pressure (pre-load) of up to 150lbs (70kg).
- Aluminum extrusion casing and anodized coated, high grade zinc plating on magnet and plate.
- No residual magnetism.
- Low energy consumption.
- 350mA Field-Selectable 12/24VDC (At 12VDC, 175mA at 24VDC).
- 1,500lbf Holding Force.
- Fail-Safe.
- Lock & Door Status Sensors.
Specifications
- Dimensions
- 8-5/8″W x 1-7/16″H x 1-3/8″D (218mm x 36mm x 35mm)
- Armature Plate
- 7-1/8″W x 1-3/16″H x 1/2″D (181mm x 30mm x 12.5mm)
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
Downloads
- Data Sheet
- Product Catalog
- Installation Manual
